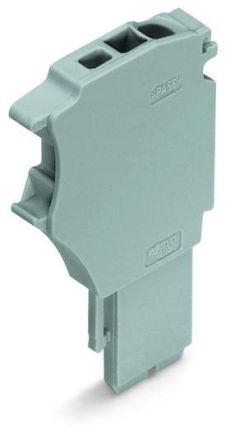

Wago 2020-161 1-wire 1-pole 1.50qmm grey female connector end module

Wago 2020-161 1-wire 1-pole 1.50qmm grey female connector end module

In stock

SKU: 817281

Price on request

€1.29

€0

Into a basketIn the basketGo

Overview

2020-161 1-conductor 1-pole 1.50qmm gray female connector end module Manufacturer article number: 2020-161, Manufacturer article name: 1-conductor 1-pole 1.50qmm gray

Property	Value
Number of poles:	1
Color:	gray
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	13.5 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.5 to 1.5 mm²
Connectable conductor cross-section, multi-wire:	0.14 to 1 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 0.75 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 1.5 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB1-wire 1-pole 1.50qmm grey

Minimal order250 pcs

Manufacturer

HAN2020-161

GTIN4050821245131

Connectable conductor cross-section solid0.5 to 1.5 mm²

Connectable conductor cross-section stranded0.14 to 1 mm²

Rated voltage500V

Rated current In13.5A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeOther

Number of poles1

TransparentNo
