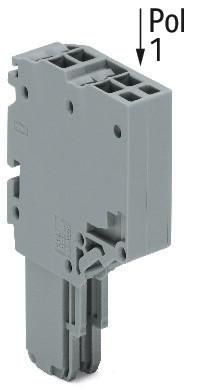

Wago 2020-202 female connector 0.14-1.5qmm series 2020

In stock

SKU: 977825

Price on request

€4.30

€0

Overview

2020-202 2L SPRING Leis. O.BR. 2-P

Property	Value
Number of poles:	2< /td>
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	13.5 A
Color:	grey
Operating temperature:	105 °C
QS fine-stranded:	0.14 to 1.5 mm²
QS single-wire:	0.5 to 1.5 mm²
QS multi-wire:	0.14 to 1 mm²
QS wire end ferrule:	0.5 to 0.75 mm²
Mounting type :	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminals per pole:	2
Flammability class of the insulating material according to UL94:	V0
End plate required:< /td>	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	7.7 mm
Height:	25 mm
Depth:	40.5 mm
