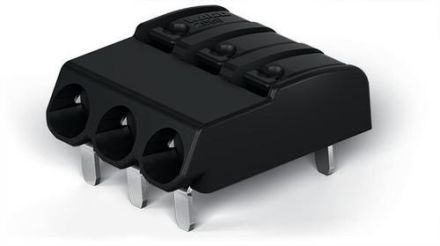

Wago 2060-1473/998-404 terminal block 0.2-0.75qmm series 2060 9A 3p

In stock

SKU: 972527

Price on request

€1.28

€0

Overview

THR PCB terminal, push-button, 0.75 mm², pitch 4 mm, 3-pole, Push-in CAGE CLAMP®, in a belt, 0.75 mm², black

Property	Value
Number of poles:	3
Rated voltage:	160 V
Material of the insulating body:	Thermoplastic
Rated current In:	9 A
Color:	black
Operating temperature:	-60 to 105 °C
QS fine-stranded:	0.2 to 0.75 mm²
QS single-stranded:	0.2 to 0.75 mm²
QS multi-stranded:	0.2 to 0.75 mm²
QS wire end ferrule:	0.25 to 0.34 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
Explosion-tested version Ex e:	no
Transparent:	no
Width:	4 mm
Height:	6.9 mm
Depth:	12.7 mm
