Wago 2060-1852/998-404 terminal block 0.2-0.75qmm series 2060 9A 2p

In stock
SKU: 971457
€1.31
Into a basketIn the basketGo

Overview

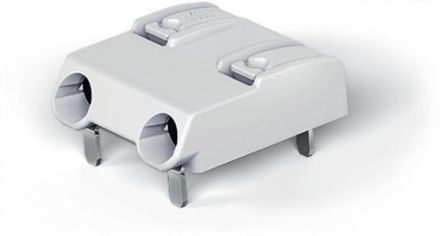

THR PCB terminal, push-button, 0.75 mm², pitch 8 mm, 2-pole, Push-in CAGE CLAMP®, in a belt, 0.75 mm², white

Property Value
Number of poles: 2
Rated voltage: 630 V
Material of the insulating body: Thermoplastic
Rated current In: 9 A
Color: white
Operating temperature: -60 to 105 °C
QS fine-stranded: 0.2 to 0.75 mm²
QS single-stranded: 0.2 to 0.75 mm²
QS multi-stranded: 0.2 to 0.75 mm²
QS wire end ferrule: 0.25 to 0.34 mm²
Mounting type: other
Design of electrical connection 1: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Number of terminal points per pole: 1
Flammability class of the insulating material according to UL94: V0
Explosion-tested version Ex e: no
Transparent: no
Width: 11.9 mm
Height: 6.9 mm
Depth: 12.7 mm

Characteristics

Minimal order550 pcs
ManufacturerWago
HAN2060-1852/998-404
GTIN4055143331173
Rated voltage630V
Rated current In9 A
Operating temperatur-60 to 105 °C
Width11.9 mm
ColorWhite
Height6.9 mm
Mounting typeOther
Number of poles2
Depth12.7 mm
TransparentNo
