Wago 2061-1603/998-404 terminal block 0.5-1.5qmm series 2061 17.5A

In stock

SKU: 972539

Price on request

€2.46

€0

Overview

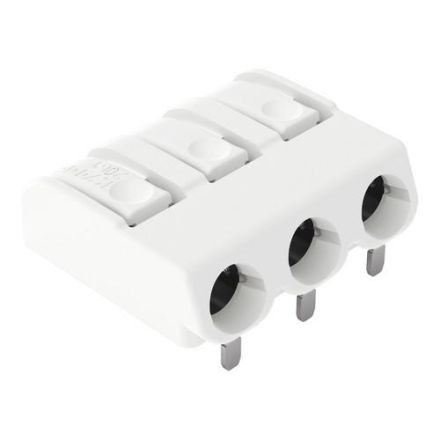

THR PCB terminal, push-button, 1.5 mm², pitch 6 mm, 3-pole, Push-in CAGE CLAMP®, in a belt, 1.50 mm², white

Property	Value
Number of poles:	3
Rated voltage:	320 V
Material of the insulating body:	Thermoplastic
Rated current In:	17.5 A
Color:	white
Operating temperature:	-60 to 105 °C
QS fine-stranded:	0.5 to 1.5 mm²
QS single-stranded:	0.5 to 1.5 mm²
QS multi-stranded:	0.5 to 1.5 mm²
QS wire end ferrule:	0.5 to 0.75 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
Explosion-tested version Ex e:	no
Transparent:	no
Width:	6 mm
Height:	8 mm
Depth:	15.2 mm
