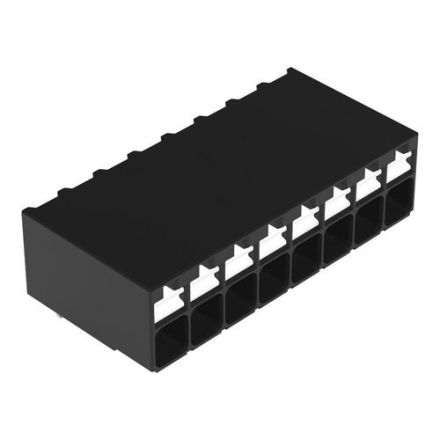

Wago 2086-1228/300-000 print terminal 8f 1re black RM=3.5

In stock

SKU: 971813

Price on request

€2.69

€0

Overview

THR PCB terminal, push-button, 1.5 mm², pitch 3.5 mm, 8-pin, Push-in CAGE CLAMP®, solder pin length 1.5 mm, 1.50 mm², black

Property	Value
Connectable conductor cross-section, single-wire:	0.14 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.14 to 1.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	THR connection
Number of electrical connections:	8
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	17.5 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	black
Height:	7.8 mm
Length of pin:	1.5 mm
Pitch of connections:	3.5 mm
Overvoltage category:	III
Pollution level:	2
Material of connection surface:	Tin
Material of insulation body:	Thermoplastic
Angle of circuit board/conductor connection:	0°/180° (horizontal)
