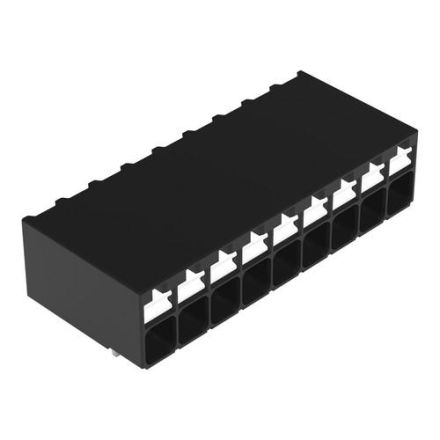

Wago 2086-1229 THR PCB terminal, push button, 1.5 mm

In stock

SKU: 970563

Price on request

€2.50

€0

Overview

THR PCB terminal, push-button, 1.5 mm

Property	Value
Connectable conductor cross-section, single-wire:	0.14 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 1.5 mm²
Connectable conductor cross-section, multi-wire:	0.14 to 1.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	THR connection
Number of electrical connections:	9
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	17.5 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	black
Height:	10.2 mm
Length of the pin:	2.4 mm
Pitch of the Connections:	3.5 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulation body:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
