Wago 2091-1102/000-5000 terminal block 0.2-1.5qmm 10A 2p Thermopl

In stock

SKU: 982681

Price on request

€2.19

€0

Overview

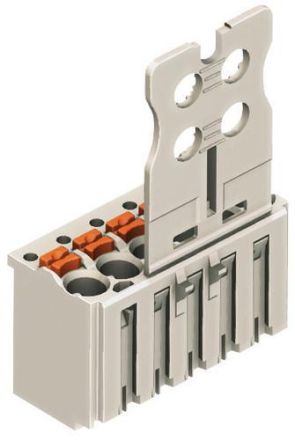

1-conductor female connector, push-button, Push-in CAGE CLAMP®, 1.5 mm², pitch 3.5 mm, 2-pole, handle plate, directly printed, 1.50 mm², light grey

Property	Value
Number of poles:	2
Rated voltage:	160 V
Material of the insulating body:	Thermoplastic
Rated current In:	10 A
Color:	grey
Operating temperature:	-60 to 100 °C
QS fine-stranded:	0.2 to 1.5 mm²
QS single-stranded:	0.2 to 1.5 mm²
QS multi-stranded:	0.2 to 1.5 mm²
QS wire end ferrule:	0.25 to 0.75 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	3.5 mm
Height:	31 mm
Depth:	11.4 mm
