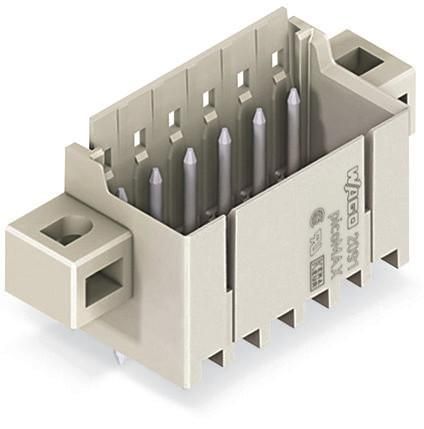

Wago 2091-1404/205-000 10A, 160V, 4p, solder connector LP

In stock

SKU: 977786

Price on request

€1.89

€0

Overview

THR pin header, solder pin Ø 1.0 mm, straight, mounting flange, pitch 3.5 mm, 4-pin, light gray

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	THR connection
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Connection pin diameter:	1 mm
Suitable for circuit board thickness:	2 mm
Housing color:	gray
Contact design:	Pin
Pin length:	3.6 mm
Connector pitch:	3.5 mm
Contact pitch:	3.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Contact coating material:	tin
Material of the insulating body:	Thermoplastic
Angle circuit board/contact:	90° (vertical upwards)
Connection type:	flexible circuit board connector
Number of poles:	4
