Wago 2092-1109/002-000 terminal block 0.2-2.5qmm 16A 9p Thermopl

In stock

SKU: 969537

Price on request

€6.27

€0

Overview

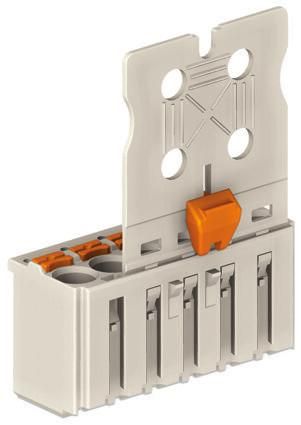

1-conductor female connector, push-button, Push-in CAGE CLAMP®, 2.5 mm², pitch 5 mm, 9-pin, handle plate and release slide, 2.50 mm², light gray

Property	Value
Number of poles:	9
Rated voltage:	320 V
Material of the insulating body:	Thermoplastic
Rated current In:	16 A
Color:	gray
Operating temperature:	-60 to 100 °C
QS fine-stranded:	0.2 to 2.5 mm²
QS single-stranded:	0.2 to 2.5 mm²
QS stranded:	0.2 to 2.5 mm²
QS wire end ferrule:	0.25 to 1.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	5 mm
Height:	13.4 mm
Depth:	14.4 mm
