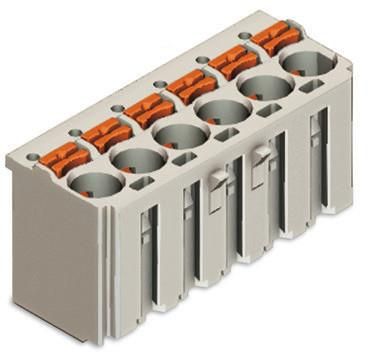

Wago 2092-1130 female connector 0.2-2.5qmm series 2092 16A

In stock

SKU: 981801

Price on request

€5.93

€0

Overview

2092-1130 SPRINGPower. CCS 5MM 10-P

Property	Value
Number of poles:	10
Rated voltage:	320 V
Material of the insulating body:	Thermoplastic
Rated current In:	16 A
Color:	gray
Operating temperature:	-60 to 100 °C
QS fine-stranded:	0.2 to 2.5 mm²
QS single-wire:	0.2 to 2.5 mm²
QS multi-wire:	0.2 to 2.5 mm²
QS wire end ferrule:	0.25 to 1.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	5 mm
Height:	13.4 mm
Depth:	13.4 mm
