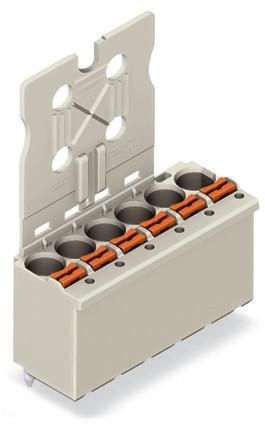

Wago 2092-1152/000-5000 PCB connector pin 2p lgr 1re 5mm

In stock

SKU: 981807

Price on request

€2.30

€0

Overview

1-conductor THT female connector, straight, push-button, Push-in CAGE CLAMP®, 2.5 mm², pitch 5 mm, 2-pole, solder pin Ø 1.4 mm, grip plate, directly printed, 2.50 mm², light gray

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Connection pin diameter:	1.4 mm
Suitable for PCB thickness:	2 mm
Housing color:	gray
Contact design:	pin
Pin length:	3.6 mm
Connector pitch:	5 mm
Contact pitch:	5 mm
Connector design:	free connector
Overvoltage category:	III
Degree of contamination:	2
Material of the contact coating:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/contact:	90° (vertical upwards)
Connection type:	flexible circuit board connector
Number of poles:	2
