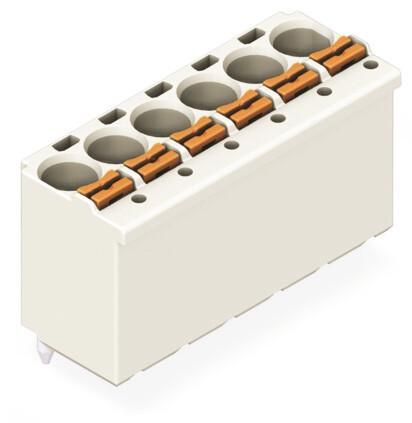

Wago 2092-1173 PCB connector pin 3p series 2092 lgr

2092-1173 SPRING. eCOM CCS 5MM GER. 3-P.

< td>Contact pitch: < td>Material of the contact coating:

Property	Value
Number of rows of plug contacts:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 ° C
Flammability class of the insulating material according to UL94:	V0
Connection pin diameter:	1.4 mm
Suitable for PCB thickness:	2 mm
Housing color:	grey
Contact type:	Pin
Length of Pins:	3.6 mm
Pitch of the connectors:	5 mm
5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution degree:	2
Tin
Material of the insulating body:	Thermoplastic
Angle PCB/Contact:	90° (vertical upwards)
Connection type:	flexible PCB connector
Number of poles:	3
