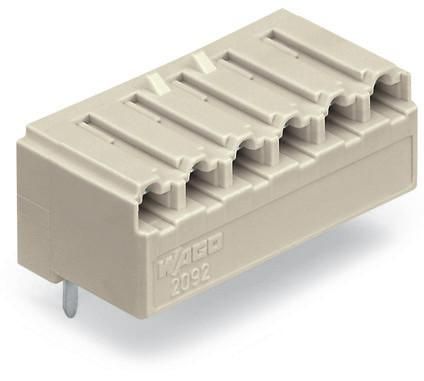

Wago 2092-1326 PCB connector pin 6p series 2092 lgr

In stock

SKU: 977550

Price on request

€5.05

€0

Overview

2092-1326 FEDERAL M.ABGEW.SOLDERING PIN 6-P.

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of electrical connection:	Soldering connection
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	2 mm
Housing color:	gray
Contact design:	pin
Pin length:	3.6 mm
Pitch of connections:	5 mm
Pitch of contacts:	5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible PCB connector
Number of pins:	6
