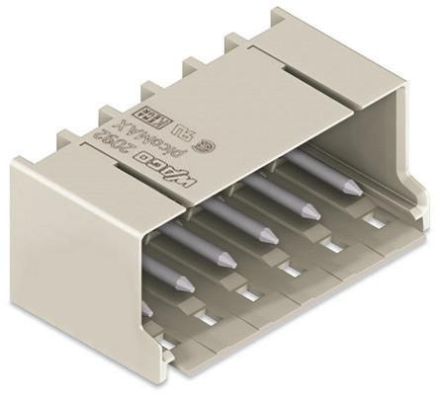

Wago 2092-1424 PCB connector pin 4p series 2092 lgr

In stock

SKU: 977864

Price on request

€1.09

€0

Overview

2092-1424 PIN WITH DECLINED SOLDERING ST. 4-P.

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Connection pin diameter:	1.4 mm
Suitable for circuit board thickness:	2 mm
Housing color:	grey
Contact design:	pin
Length of Pins:	3.6 mm
Pitch of connections:	5 mm
Pitch of contacts:	5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution degree:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle Circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible circuit board connector
Number of pins:	4
