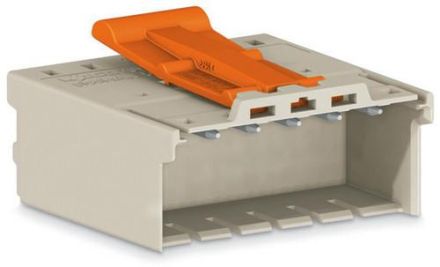

Wago 2092-1522/002-000 R5mm, 2p, 0.2mm² terminal block

In stock

SKU: 981822

Price on request

€2.40

€0

Overview

1-conductor pin strip, Push-in CAGE CLAMP®, 2.5 mm², pitch 5 mm, 2-pole, release lever, 2.50 mm², light gray

Property	Value
Number of poles:	2
Rated voltage:	320 V
Material of the insulating body:	Thermoplastic
Rated current In:	16 A
Color:	gray
Operating temperature:	-60 to 100 °C
QS fine-stranded:	0.2 to 2.5 mm²
QS single-stranded:	0.2 to 2.5 mm²
QS stranded:	0.2 to 2.5 mm²
QS wire end ferrule:	0.25 to 1.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	5 mm
Height:	18.2 mm
Depth:	32.6 mm
