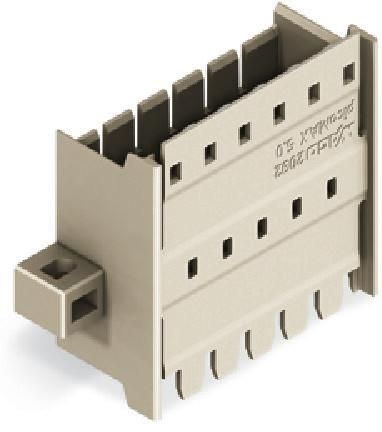

Wago 2092-1633/024-000 R5mm, 3p, 320V terminal block

Wago 2092-1633/024-000 R5mm, 3p, 320V terminal block

In stock

SKU: 974704

Price on request

€1.89

€0

Into a basketIn the basketGo

Overview

Feed-through pin strip, mounting flange, 2.5 mm², 3-pole, pitch 5 mm, light grey

Property	Value
Number of poles:	3
Rated voltage:	320 V
Material of the insulating body:	Thermoplastic
Rated current In:	16 A
Color:	grey
Operating temperature:	-60 to 100 °C
Mounting type:	other
Design of electrical connection 1:	other
Design of electrical connection 2:	other
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	5 mm
Height:	14.4 mm
Depth:	33.4 mm

Characteristics

Minimal order100 pcs

Manufacturer

HAN2092-1633/024-000

GTIN4050821165712

Rated voltage320V

Rated current In16A

Operating temperatur-60 to 100 °C

Width5 mm

Color

Height14.4 mm

Mounting typeOther

Number of poles3

Depth33.4 mm

TransparentNo

Wago 2092-1633/024-000 R5mm, 3p, 320V terminal block

Wago 2092-1633/024-000 R5mm, 3p, 320V terminal block

Price on request

€1.89

€0

Into a basketIn the basketGo
