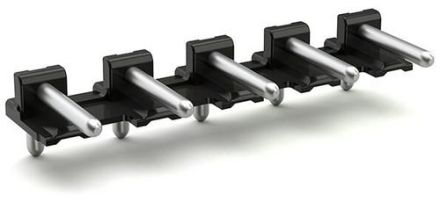

Wago 2092-3722 solder pin strip

In stock

SKU: 977132

Price on request

€0.85

€0

Overview

THT pin header, solder pin Ø 1.4 mm, angled, pitch 7.5 mm, 2-pin, black

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Connection pin diameter:	1.4 mm
Housing color:	black
Contact design:	pin
Length of pin:	3.6 mm
Pitch of connections:	7.5 mm
Pitch of contacts:	7.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible circuit board connector
Number of poles:	2
