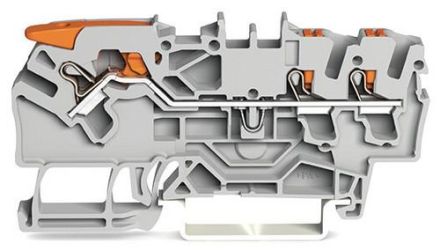

Wago 2102-5303 3-wire feed-through terminal, with lever and

In stock

SKU: 962747

Price on request

€2.43

€0

Overview

3-conductor feed-through terminal, with lever and

Property	Value
QS single-wire:	0.75 to 4 mm²
QS fine-wire:	0.25 to 4 mm²
QS multi-wire:	0.25 to 2.5 mm²
Color:	red
QS wire end ferrule:	0.75 to 2.5 mm²
Rated voltage:	800 V
Levels:	1
Terminal points per level:	3
Rated current In:	24 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Internal levels bridged:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	5.2 mm
Height:	72.2 mm
Depth:	32.9 mm
