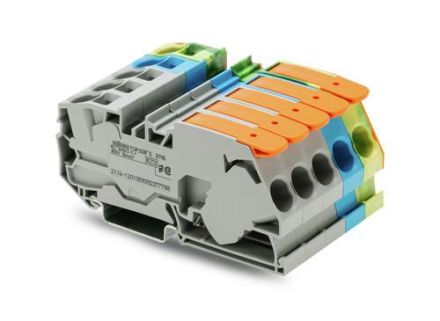

Wago 2116-1201/605-038 with orange end plate three-phase set

Wago 2116-1201/605-038 with orange end plate three-phase set

In stock

SKU: 766321

Price on request

€17.78

€0

Into a basketIn the basketGo

Overview

Three-phase set, with orange end plate, with 2-conductor terminal blocks, with lever and actuation opening, 16 mm², Push-in CAGE CLAMP®, 16.00 mm², grey/blue/green-yellow

Property	Value
Number of poles:	5
Color:	multicolored
Rated voltage:	800 V
Material of the insulating body:	Thermoplastic
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	2.5 to 16 mm²
Connectable conductor cross-section, multi-wire:	0.5 to 16 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	6 to 16 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 25 mm²
Mounting type:	DIN rail TH35
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HABWith orange end plate

Manufacturer

HAN2116-1201/605-038

GTIN4055143909853

Connectable conductor cross-section solid2.5 to 16 mm²

Connectable conductor cross-section stranded0.5 to 16 mm²

Rated voltage800V

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Number of poles5

TransparentNo
