Wago 218-105/000-604/997-405 print terminal 5f 1re black series 218 RM=2.5

In stock

SKU: 978993

Price on request

€5.01

€0

Overview

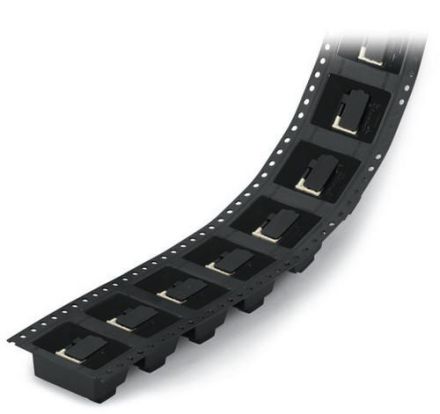

THR PCB terminal, actuating slide, 0.5 mm², pitch 2.5 mm, 5-pin, CAGE CLAMP®, on a tape, 0.50 mm², black

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 0.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 0.5 mm²
Connectable conductor cross-section stranded:	0.08 to 0.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	THR connection
Number of electrical connections:	5
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	6 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V2
Housing color:	black
Height:	8.1 mm
Pin length:	2.8 mm
Connection pitch:	2.5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	other
