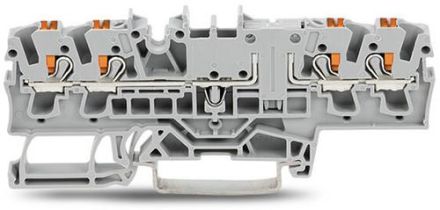

Wago 2202-1801 4-wire through terminal

In stock

SKU: 978656

Price on request

€4.84

€0

Overview

4-conductor feed-through terminal

Property	Value
QS single-wire:	0.75 to 4 mm²
QS fine-wire:	0.25 to 4 mm²
QS multi-wire:	0.25 to 2.5 mm²
Color:	gray
QS wire end ferrule:	0.75 to 2.5 mm²
Rated voltage:	400 V
Levels:	1
Terminal points per level:	4
Rated current In:	16 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	5.2 mm
Height:	87.5 mm
Depth:	32.9 mm
