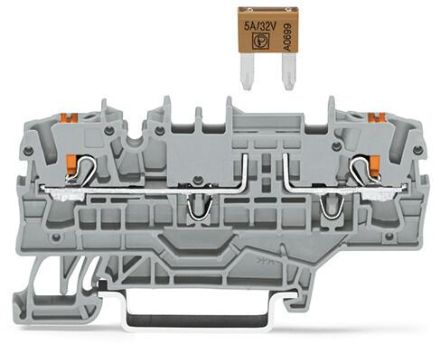

Wago 2202-1981 2-wire fuse terminal, for automotive mini

In stock

SKU: 963505

Price on request

€3.01

€0

Overview

2-conductor fuse terminal, for automotive mini

Property	Value
QS single-wire:	0.75 to 4 mm²
QS multi-wire:	0.25 to 2.5 mm²
QS fine-wire:	0.25 to 4 mm²
Connectable conductor cross-section fine-wire with wire end ferrule:	0.75 to 2.5 mm²
Operating temperature:	105 °C
Rated current In:	10 A
Design of the fuse insert:	Flat fuse
Design of the fuse holder:	plug-in
Type of display element for the defect indication:	without
Rated voltage:	400 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of Levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	no
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Width:	5.2 mm
Height:	72.9 mm
Depth:	32.9 mm
