Wago 2202-3209 three-level terminal 2.50 mm², blue

In stock

SKU: 963062

Price on request

€4.63

€0

Overview

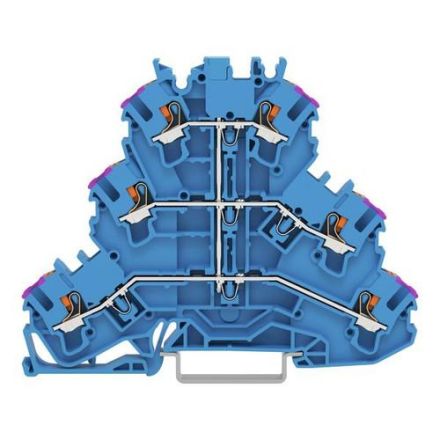

Three-level terminal 2.50 mm², blue

Property	Value
QS single-core:	0.75 to 4 mm²
QS fine-core:	0.25 to 4 mm²
QS multi-core:	0.25 to 2.5 mm²
Color:	blue
QS wire end ferrule:	0.75 to 2.5 mm²
Rated voltage:	500 V
Levels:	3
Terminal points per level:	2
Rated current In:	22 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Width:	5.2 mm
Height:	93.6 mm
Depth:	69.5 mm
