Wago 231-236/001-000/105-604/997-409 PCB connector pin 6p series 231 sw

In stock

SKU: 965685

Price on request

€4.17

€0

Overview

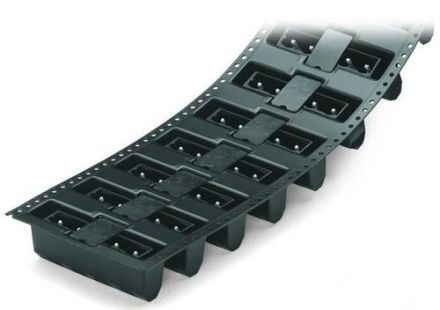

THR pin header, solder pin 1.0 x 1.0 mm, straight, in tape, pitch 7.5 mm, 6-pin, black

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	THR connection
Mounting type:	soldering
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	12 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	black
Contact design:	pin
Length of pin:	2.4 mm
Pitch of connections:	7.5 mm
Pitch of contacts:	7.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle PCB/contact:	90° (vertical upwards)
Connection type:	flexible PCB connector
Number of pins:	6
