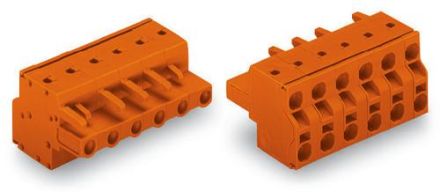

Wago 231-2703/026-000 R7.62mm, 3p, 400V terminal block

In stock

SKU: 977314

Price on request

€3.59

€0

Overview

2-conductor female connector, Push-in CAGE CLAMP®, 2.5 mm², pitch 7.62 mm, 3-pin, with integrated end plate, 2.50 mm², orange

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.2 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.2 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.2 to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	16 A
Operating temperature:	-60 to 85 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Contact design:	socket
With protective conductor:	no
Pitch of the connections:	7.62 mm
Pitch of the contacts:	7.62 mm
Degree of protection (IP), mounted:	IP20
Overvoltage category:	III
Pollution level:	2
Material of the contact coating:	Tin
Material of the housing:	Plastic
Material of the insulation body:	Thermoplastic
Material of the contact:	Other copper alloys
Angle of contact/conductor connection:	180° (horizontal)
Type of connection:	PCB to Cable
Number of poles:	3
Housing coating:	uncoated
