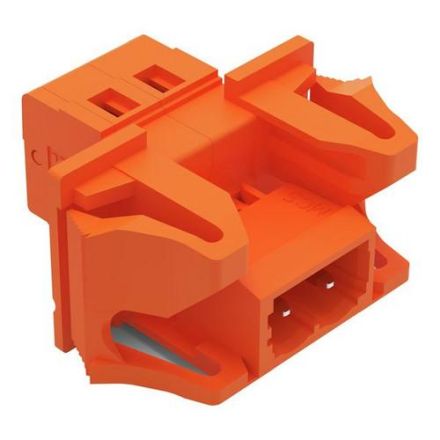

Wago 231-642/114-000 R5mm, 12p, 0.08-2.5mm² pin header

In stock

SKU: 982137

Price on request

€9.63

€0

Overview

1-conductor pin header, CAGE CLAMP®, 2.5 mm², pitch 5.08 mm, 12-pin, snap-in flange, 2.50 mm², orange

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	12 A
Operating temperature:	-60 up to 100 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Contact design:	pin
With protective conductor:	no
Pitch of the connections:	5.08 mm
Pitch of the contacts:	5.08 mm
Degree of protection (IP), mounted:	IP10
Overvoltage category:	III
Pollution level:	2
Material of the contact coating:	Tin
Material of the housing:	Plastic
Material of the insulation body:	Thermoplastic
Material of the contact:	Other copper alloys
Angle of contact/conductor connection:	180° (horizontal)
Type of connection:	PCB to Cable
Number of poles:	12
Housing coating:	uncoated
