Wago 231-873/001-000 R7.5mm, 13p, 400V terminal block

In stock

SKU: 978309

Price on request

€4.05

€0

Overview

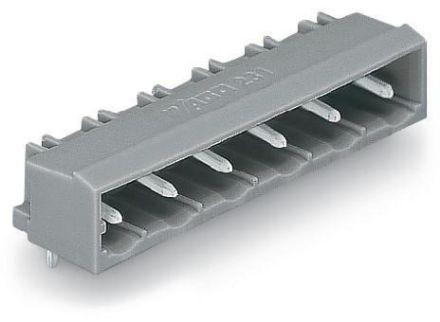

THT pin header, solder pin 1.2 x 1.2 mm, angled, pitch 7.5 mm, 13-pin, gray

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	gray
Contact design:	pin
Length of pin:	3.8 mm
Pitch of connections:	7.5 mm
Pitch of contacts:	7.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible circuit board connector
Number of pins:	13
