Wago 232-179/039-000 PCB connector pin 19p series 232 or

In stock

SKU: 976889

Price on request

€10.43

€0

Overview

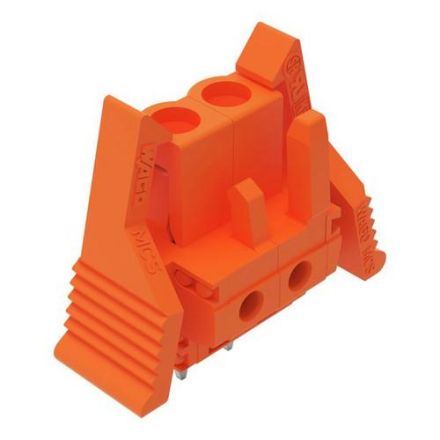

THT female connector, straight, pitch 5.08 mm, 19-pin, locking latch, solder pin 0.6 x 1.0 mm, orange

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	12 A
Operating temperature:	-60 to 85 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	orange
Contact design:	Pin
Pin length:	5 mm
Connection pitch:	5.08 mm
Contact pitch:	5.08 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Contact coating material:	tin
Insulating body material:	Thermoplastic
Angle PCB/contact:	90° (vertical upwards)
Connection type:	flexible PCB connector
Number of pins:	19
