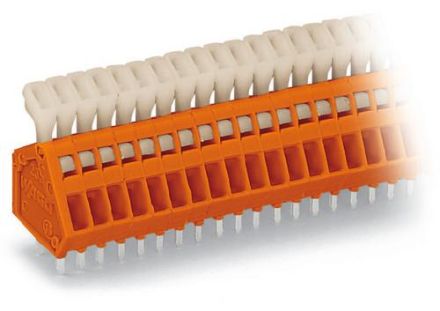

Wago 233-510 print terminal 10f 1re or series 233 RM=2.54

In stock

SKU: 978465

Price on request

€6.12

€0

Overview

233-510 GDS-kl M.DR. 10-P. 2.54MM

< td>Case color:

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 0.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 0.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 0.5 mm²
Connection type conductor:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	10
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:< /td>	2.5 kV
Rated current In:	6 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
orange
Height:	15.5 mm
Pin length:	4 mm
Connector pitch:	2.54 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/conductor connection:	other
