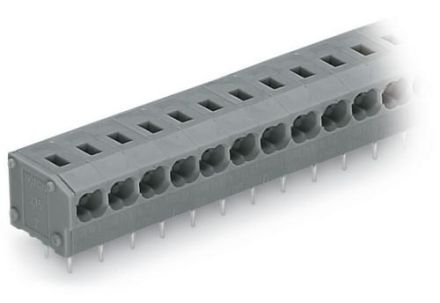

Wago 235-454 print terminal 4f 1re gr series 235 RM=5.08

In stock

SKU: 974949

Price on request

€1.63

€0

Overview

235-454 GDS-K 2X0 75 QMM 4-P

Property	Value
Connectable conductor cross-section, single-wire:	0.25 to 0.75 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 0.34 mm²
Conductor connection type:	Plug-in terminal connection
PCB connection type:	Solder connection
Number of electrical connections:	4
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	connection contact
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	10 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	9.2 mm
Length of the pin:	3.6 mm
Pitch of the connections:	5 mm
Overvoltage category:	III
Degree of pollution:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
