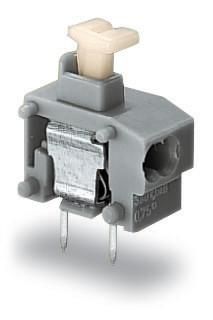

Wago 235-551/331-000 R7.5mm, 1p, 400V terminal block

In stock

SKU: 977428

Price on request

€0.30

€0

Overview

Series 2-conductor PCB terminal block, push-button, 0.75 mm², pitch 7.5/7.62 mm, 1-pole, PUSH WIRE®, 0.75 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 0.75 mm²
Conductor connection type:	Plug-in terminal connection
PCB connection type:	Solder connection
Number of electrical connections:	1
Number of Levels:	1
Type of banding:	without
Type of PCB mounting:	connection contact
Mounting type:	soldering
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	10 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	15.5 mm
Length of the pin:	3.6 mm
Pitch of the connections:	7.5 mm
Overvoltage category:	III
Degree of pollution:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle of circuit board/conductor connection:	0°/180° (horizontal)
