Wago 235-745/331-000 R5mm, 1p, 250V terminal block

In stock

SKU: 976936

Price on request

€0.30

€0

Overview

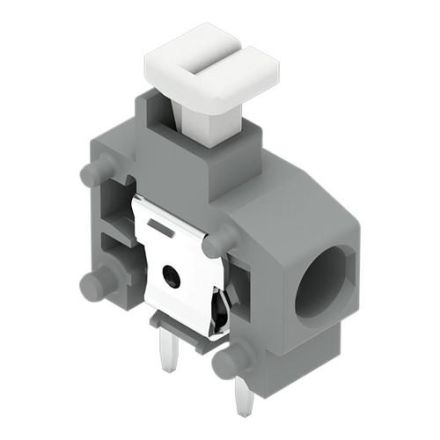

Series PCB terminal block, push-button, 1.5 mm², pitch 5/5.08 mm, 1-pole, Push-in CAGE CLAMP®, 1.50 mm², white

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.75 to 1.5 mm²
Connection type Conductor:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	1
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	17.5 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	white
Height:	15.5 mm
Length of the pin:	3.6 mm
Pitch of the Connections:	5 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulation body:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
