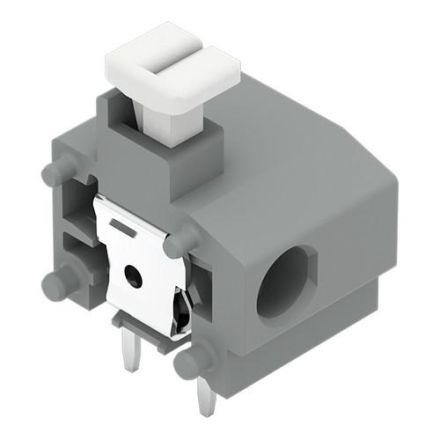

Wago 235-766/331-000 R10mm, 1p, 500V terminal block

In stock

SKU: 974104

Price on request

€0.30

€0

Overview

Series PCB terminal block, push-button, 1.5 mm², pitch 10/10.16 mm, 1-pole, Push-in CAGE CLAMP®, 1.50 mm², orange

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.75 to 1.5 mm²
Connection type Conductor:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	1
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	1000 V
Rated impulse voltage:	8 kV
Rated current In:	17.5 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Height:	15.5 mm
Length of the pin:	3.6 mm
Pitch of the Connections:	10 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulation body:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
