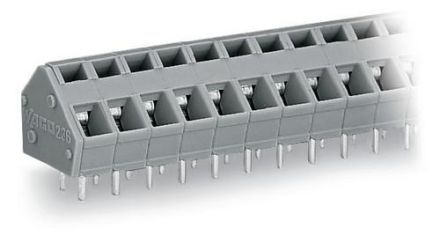

Wago 236-416/000-009/999-950 16p, 16A, 176V print terminal 5mm

In stock

SKU: 974164

Price on request

€10.90

€0

Overview

PCB terminal, 2.5 mm², pitch 5/5.08 mm, 16-pin, Ex-e suitable, CAGE CLAMP®, bridging option, 2.50 mm², light gray

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.5 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	16
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	176 V
Rated current In:	16 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	13 mm
Length of the pin:	4 mm
Connection pitch:	5 mm
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
