Wago 250-411/000-009 PCB terminal, push button, 0.5 mm², R

In stock

SKU: 962260

Price on request

€2.59

€0

Overview

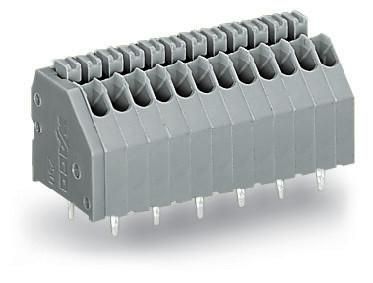

PCB terminal, push-button, 0.5 mm², pitch 2.5 mm, 11-pin, Push-in CAGE CLAMP®, 0.50 mm², light gray

Property	Value
Connectable conductor cross-section, single-wire:	0.14 to 0.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 0.5 mm²
Connectable conductor cross-section, stranded:	0.2 to 0.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	11
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	4 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	13.1 mm
Length of the pin:	3.6 mm
Pitch of the connections:	2.5 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulation body:	Thermoplastic
Angle of circuit board/conductor connection:	45°/135° (obliquely upwards)
