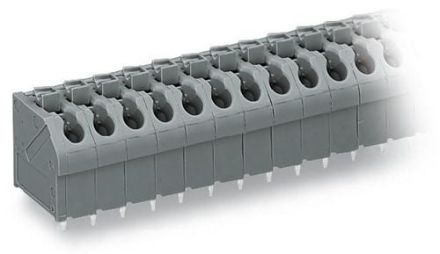

Wago 250-512/000-012 12p, 17.5A, 320V, or print terminal 5mm

In stock

SKU: 968101

Price on request

€5.62

€0

Overview

PCB terminal, push-button, 1.5 mm², pitch 5 mm, 12-pin, Push-in CAGE CLAMP®, 1.50 mm², orange

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 1 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.75 to 1.5 mm²
Connectable conductor cross-section, multi-wire:	0.5 to 1.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	12
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	17.5 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Height:	16.5 mm
Length of Pins:	4 mm
Connection pitch:	5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
