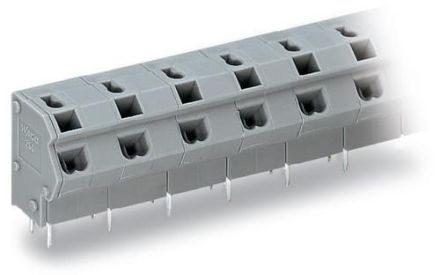

Wago 254-354 print terminal 4f 1re gr series 254 RM=10.16

In stock

SKU: 970253

Price on request

€1.90

€0

Overview

254-354 2-LEAD TERMINAL L.O.DR. 10/10.16 4

Property	Value
Connectable conductor cross-section, single-wire:	0.25 to 0.75 mm²
Conductor connection type:	Plug-in terminal connection
PCB connection type:	Solder connection
Number of electrical connections:	4
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Mounting type:	soldering
Rated voltage:	1000 V
Rated impulse voltage:	8 kV
Rated current In :	10 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing colour:	grey
Height:	16.5 mm
Length of pin:	4 mm
Connection pitch:	10 mm
Overvoltage category:< /td>	III
Degree of contamination:	3
Material of the connection surface:< /td>	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/ Conductor connection:	45°/135° (obliquely upwards)
