Wago 256-407/334-000 print terminal 7p 1re gr RM=5 spring/solder

In stock

SKU: 968138

Price on request

€3.94

€0

Overview

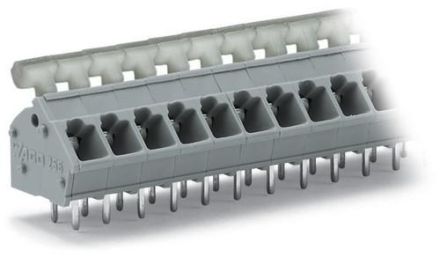

PCB terminal, push-button, 2.5 mm², pitch 5/5.08 mm, 7-pin, CAGE CLAMP®, bridging option, 2.50 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable Conductor cross-section, stranded:	0.08 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	7
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	24 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	16.1 mm
Pin length:	4 mm
Connection pitch:	5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
