Wago 256-510/334-000 print terminal 10p 1re gr RM=7.5

In stock

SKU: 977668

Price on request

€4.67

€0

Overview

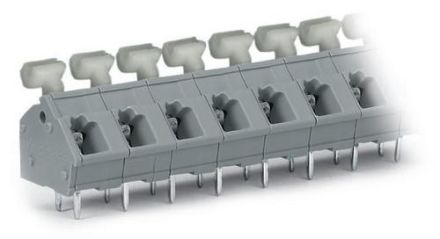

PCB terminal, push-button, 2.5 mm², pitch 7.5/7.62 mm, 10-pin, CAGE CLAMP®, bridging option, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	10
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	24 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	16.1 mm
Length of pin:	4 mm
Pitch of connections:	7.5 mm
Overvoltage category:	III
Pollution level:	2
Material of connection surface:	Tin
Material of insulation body:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
