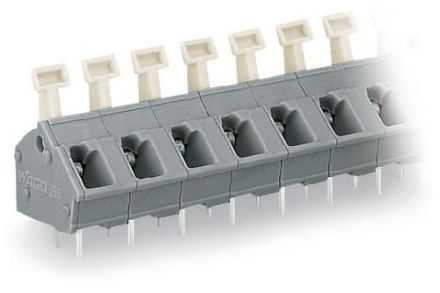

Wago 256-524/332-009/999-950 PCB terminal, push button, 2.5 mm², R

In stock

SKU: 962667

Price on request

€14.70

€0

Overview

PCB terminal, push-button, 2.5 mm², pitch 7.5/7.62 mm, 24-pin, Ex-e suitable, CAGE CLAMP®, bridging option, solder pin length 5.5 mm, 2.50 mm², light gray

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.5 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	24
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Mounting type:	soldering
Rated voltage:	275 V
Rated current In:	16 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	18.2 mm
Length of the pin:	5.5 mm
Connection pitch:	7.5 mm
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (slanted upwards)
