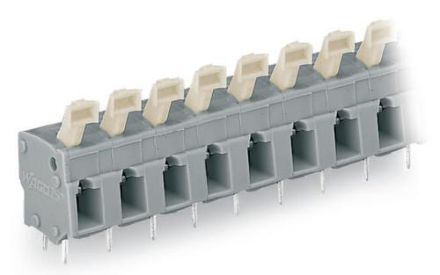

Wago 257-510 print terminal 10f 1re gr series 257 RM=7.62

In stock

SKU: 973821

Price on request

€5.92

€0

Overview

257-510 KL-Leis. SOLDERING.10-P. 7.5/

< td>Case color:

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Connection type conductor:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	10
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Mounting type:	soldering
Rated voltage:	630 V
Rated impulse voltage:< /td>	6 kV
Rated current In:	24 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
gray
Height:	20.4 mm
Pin length:	4 mm
Connector pitch:	7.5 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
