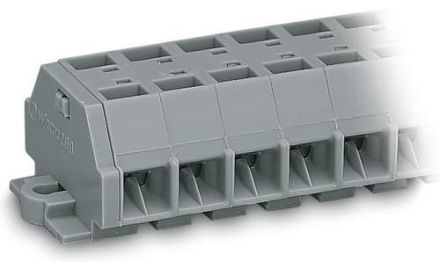

Wago 260-256 4-L.TERMINAL 1.5 QMM 6-PIN WITH LOCKING FOOT

In stock

SKU: 969979

Price on request

€5.64

€0

Overview

4-L.TERMINAL 1.5 QMM 6-POLE WITH LOCKING FOOT

Property	Value
Number of poles:	6
Rated voltage:	400 V
Material of the insulating body:	Thermoplastic
Rated current In:	18 A
Color:	gray
Operating temperature:	-30 to 85 °C
QS fine-stranded:	0.08 to 1.5 mm²
QS single-stranded:	0.08 to 1.5 mm²
QS multi-stranded:	0.08 to 1.5 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of terminal points per pole:	4
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	51 mm
Height:	25.1 mm
Depth:	17.1 mm
