Wago 2606-3103/010-000 print terminal 3f 1re gr RM=7.5

In stock

SKU: 962049

Price on request

€6.38

€0

Overview

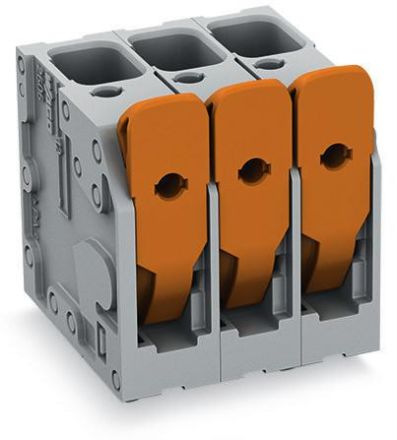

PCB terminal, lever, 6 mm², pitch 7.5 mm, 3-pole, Push-in CAGE CLAMP®, 6.00 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 6 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.2 to 10 mm²
Connectable conductor cross-section, multi-wire:	0.2 to 10 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	3
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	1000 V
Rated impulse voltage:	8 kV
Rated current In:	41 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	27 mm
Pin length:	4 mm
Connection pitch:	7.5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	90° (vertically upwards)
