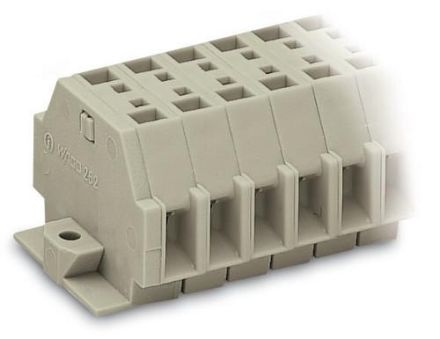

Wago 262-137 terminal block 0.5-4qmm series 262 23A 7p

In stock

SKU: 973898

Price on request

€7.50

€0

Overview

262-137 EEXEII TERMINAL L. 4QMM 7-P 2-L.

Property	Value
Number of poles:	7
Rated voltage:	550 V
Insulating body material:	Thermoplastic
Rated current In:	23 A
Color:	gray
Operating temperature:	105 °C
Center hole spacing:	57.1 mm
QS fine-stranded:	0.08 to 4 mm²
QS single-stranded:	0.08 to 4 mm²
QS multi-stranded:	0.08 to 4 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	yes
Transparent:	no
Halogen-free:	yes
Width:	63.4 mm
Height:	33.5 mm
Depth:	23.1 mm
