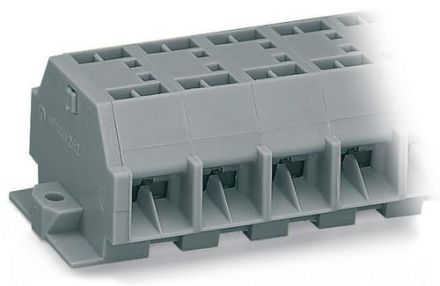

Wago 262-212 TERMINAL STRIP 4 SQMM 12-PIN 4-CONDUCTOR

In stock

SKU: 978156

Price on request

€21.56

€0

Overview

TERMINAL STRIP 4 SQMM 12-PIN. 4-CONDUCTOR

Property	Value
Number of poles:	12
Rated voltage:	630 V
Material of the insulating body:	Thermoplastic
Rated current In:	24 A
Color:	gray
Operating temperature:	105 °C
Center hole spacing:	152.1 mm
QS fine-stranded:	0.08 to 4 mm²
QS single-stranded:	0.08 to 4 mm²
QS multi-stranded:	0.08 to 4 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of terminal points per pole:	4
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	158.4 mm
Height:	33.5 mm
Depth:	23.1 mm
