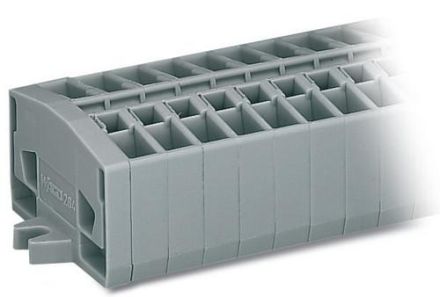

Wago 264-109 terminal block 0.08-2.5qmm series 264 24A 9p

In stock

SKU: 981522

Price on request

€11.51

€0

Overview

264-109 2-L-TERMINAL L. M.FLANGE 9-P

Property	Value
Number of poles:	9
Rated voltage:	800 V
Material of the insulating body:	Thermoplastic
Rated current In:	24 A
Color:	gray
Operating temperature:	105 °C
Center hole spacing:	63.6 mm
QS fine-stranded:	0.08 to 2.5 mm²
QS single-stranded:	0.08 to 2.5 mm²
QS multi-stranded:	0.08 to 2.5 mm²
QS wire end ferrule:	0.25 to 1.5 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	70 mm
Height:	32 mm
Depth:	22.1 mm
