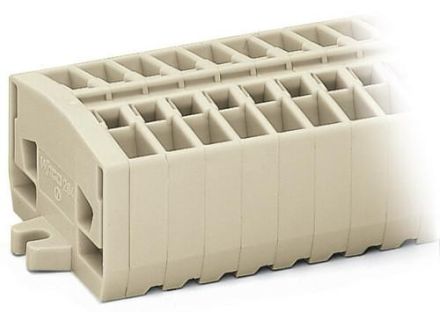

Wago 264-136 terminal block 0.08-2.5qmm series 264 24A 6p

In stock

SKU: 981530

Price on request

€8.48

€0

Overview

264-136 2-L-EX-TERMINAL L. M. FLANGE 6-P.

Property	Value
Number of poles:	6
Rated voltage:	690 V
Insulating body material:	Thermoplastic
Rated current In:	23 A
Color:	gray
Operating temperature:	105 °C
Center hole spacing:	45.6 mm
QS fine-stranded:	0.5 to 2.5 mm²
QS single-stranded:	0.5 to 2.5 mm²
QS multi-stranded:	0.5 to 2.5 mm²
QS wire end ferrule:	0.75 to 1.5 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	yes
Transparent:	no
Halogen-free:	yes
Width:	52 mm
Height:	32 mm
Depth:	22.1 mm
