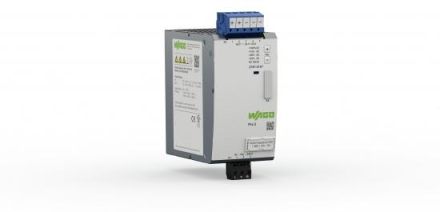

Wago 2787-2147 Power supply PSU

In stock
SKU: 715282
€401.28
Into a basketIn the basketGo

Overview

Power supply Pro 2 1-phase Output voltage DC 24 V Output current 20 A TopBoost + PowerBoost communication capable

Property Value
1. Output voltage: 24 to 28 V
Type of supply voltage: DC
Max. Output current 1: 20 A
Output voltage adjustable: yes
Rated supply voltage AC 50 Hz: 90 to 264 V
Rated supply voltage DC: 130 to 373 V
Rated supply voltage AC 60 Hz: 90 to 264 V
Short-circuit proof: yes
Stabilized: yes
Suitable for Safety functions: no
Direct mounting possible: no
Design of the electrical connection: Spring-loaded connection
Output voltage regulated: yes
Suitable for series installation: no
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 70 mm
Height: 130 mm
Depth: 130 mm
Nominal output voltage 1: 24 V
Nominal output current 1: 20 A
Width in pitch units: 4

Characteristics

Type of voltage of the supply voltageDC
Short circuit proofYes
HAB2787-2147
ManufacturerWago
HAN2787-2147
GTIN4055143878364
Design of the electrical connectionSpring-loaded connection
Width70 mm
Width in pitch units4
Suitable for series installationNo
Suitable for security functionsNo
Height130 mm
IP protection)IP20
Depth130 mm
Mounting rail possibleYes
