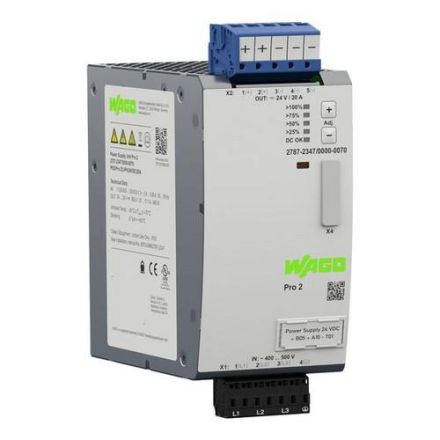

Wago 2787-2347/000-070 DC power supply 24-28V 480-780VDC

In stock

SKU: 962241

Price on request

€506.33

€0

Overview

Power supply, Pro 2, 3-phase, output voltage DC 24 V, output current 20 A, TopBoost + PowerBoost, protective coating, communication capable

Property	Value
1. Output voltage:	24 to 28 V
Type of supply voltage:	DC
Max. Output current 1:	20 A
Output voltage adjustable:	yes
Rated supply voltage AC 50 Hz:	340 to 550 V
Rated supply voltage DC:	480 to 780 V
Rated supply voltage AC 60 Hz:	340 to 550 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	70 mm
Height:	130 mm
Depth:	130 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	20 A
Width in pitch units:	4
